Mining Equipment 1.14kv 1000A 1250A High
Overview Package Size 36.00cm * 28.00cm * 31.00cm Package Gross Weight 30.500kg Lead Time 3 days (1 - 1 pcs) 7 days (2 -
Description
Basic Info.
| Model NO. | VCKJ5 |
| Main Circuit Rating Voltage | 1140V |
| Type | Ac Contactors |
| Mechanical Life Time | 1,000,000times |
| Over Travel | 0.9-1.1mm |
| Clearance Between Open Contacts | 2.7-2.9mm |
| Short-Time Operating Frequency(20s) | 1000times/H |
| Limit Breaking Capacity | 5000A/3times |
| Transport Package | Carton and Pallet |
| Trademark | VACEM |
| Origin | Wenzhou, China |
| HS Code | 8535900090 |
Packaging & Delivery
Package Size 36.00cm * 28.00cm * 31.00cm Package Gross Weight 30.500kg Lead Time 3 days (1 - 1 pcs)7 days (2 - 10 pcs)
30 days (11 - 100 pcs)
To be negotiated ( > 100 pcs)
Product Description

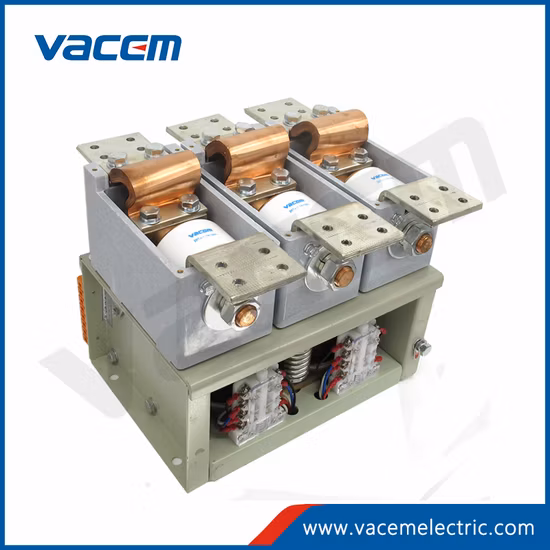

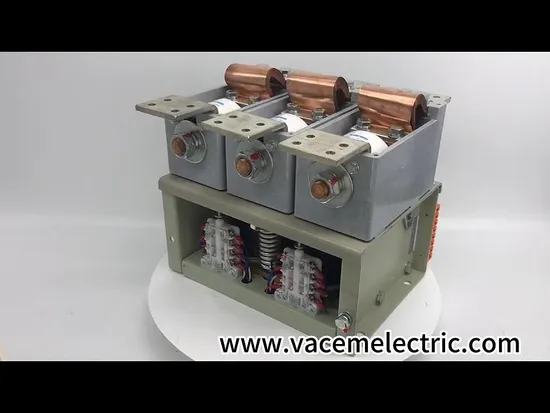

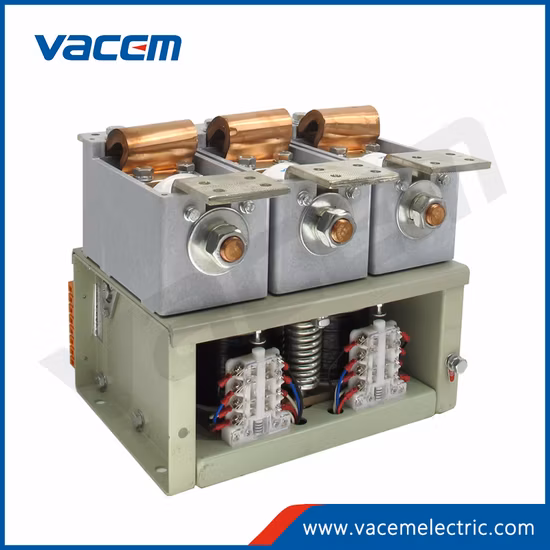

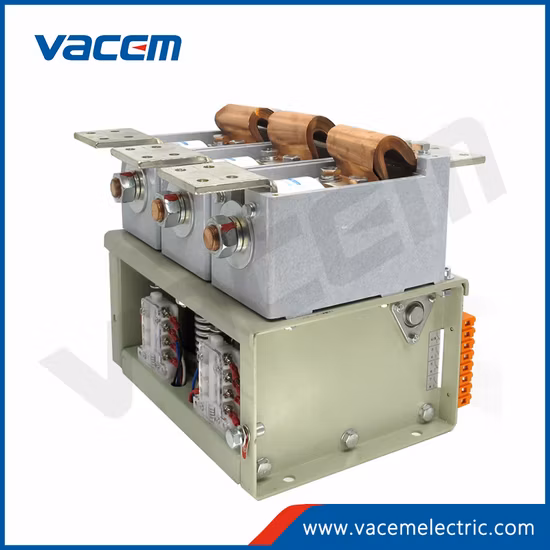

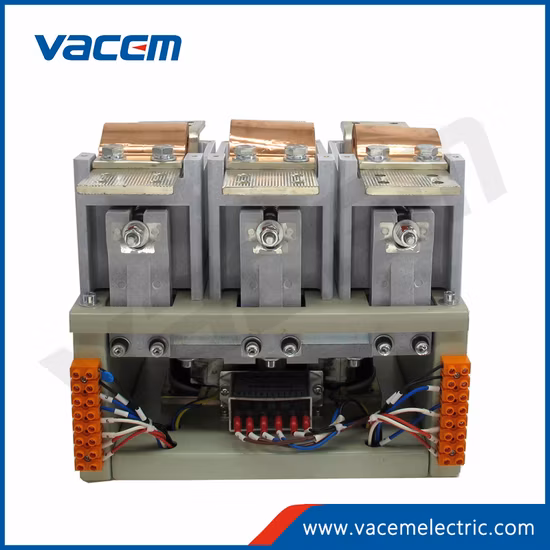

General descriptionThe Mining Equipment 1.14kv 1000A 1250A High-Performance Vacuum Contactor is designed for use in AC 50Hz power networks with a main circuit rated voltage of 1140V. It is suitable for making, breaking, frequently starting, and controlling AC motors, and can be used to form a magnetic starter with a variety of protectors, including JDB electronic integrated protection, JR9 type over current protection devices, and the RC absorption device. This vacuum contactor is particularly well-suited for use in anti-explosion magnetic starters and large mineral lapping switch equipment.
The contactor conforms to GB/T 14048.4, IEC 60947-4-1, and JB/T 7122 standards, and its main performance indicators meet international levels. As a result, it is a reliable and high-performance option for those in need of a contactor, vacuum contactor, or LV vacuum contactor.Normal using conditions
a. Environment temperature: -5ºC~+40ºC, and the average value is no more than +35ºC within 24 hours.
b. Altitude: no more than 1000m.c. Atmospheric conditions: monthly highest humidity in the wettest month is no more than 90% and the monthly average minimum temperature
shall be 25ºC. Condensation on the products due to temperature changes shall be considered.
d. Impact vibration: The place is without extensive shaking, impact, and vibration.
e. The place is without explosion hazards, enchant gas, and sleet.
f. No rain and snow in places
g. Pollution degree: Three grade
h. Installation type:III
i. Installation condition: The slant angle between the installation surface and the vertical surface is no more than 15°.Main technical parameter
| Item | Unit | CKJ-5-1000~1250/1.14 | |
| Main circuit rated voltage | kV | 1.14 | |
| Main circuit rated current | A | 1000 | 1250 |
| Main circuit making capacity | A/100times | 6000 | |
| Main circuit breaking capacity | A/100times | 4500 | |
| Limit breaking capacity | A/3times | 5000 | |
| Electrical life AC3 | times | 600,000 | |
| Electrical life AC4 | times | 60,000 | |
| Mechanical life time | times | 1,000,000 | |
| Rated operating frequency AC3 | times/h | 600 | |
| Rated operating frequency AC4 | times/h | 120 | |
| Short-time operating frequency(20s) | times/h | 1000 | |
| Clearance between open contacts | mm | 2.8±0.1 | |
| Over travel | mm | 1.0±0.1 | |
For Vacuum Circuit Breaker, pls click: https://china-vacem.en.made-in-china.com/product-group/roqEnxmCTUYh/Vacuum-Circuit-Breaker-catalog-1.html
